RS-232 DB-9 / DB25 Pin assignment No Power required
Standard RS-232 DTE & DCE Interface
Offers DB-9 Female & DB-9 Male Connectors

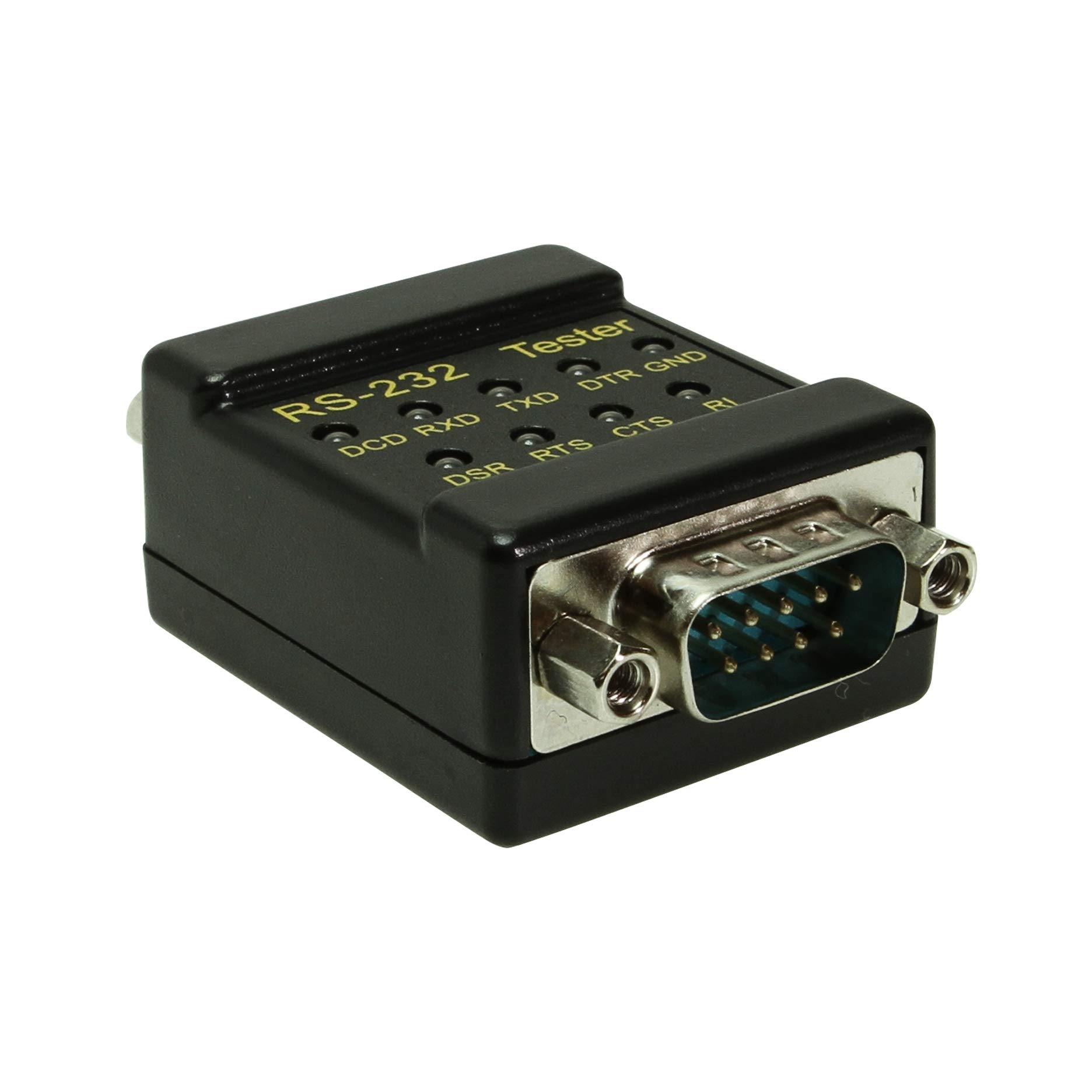

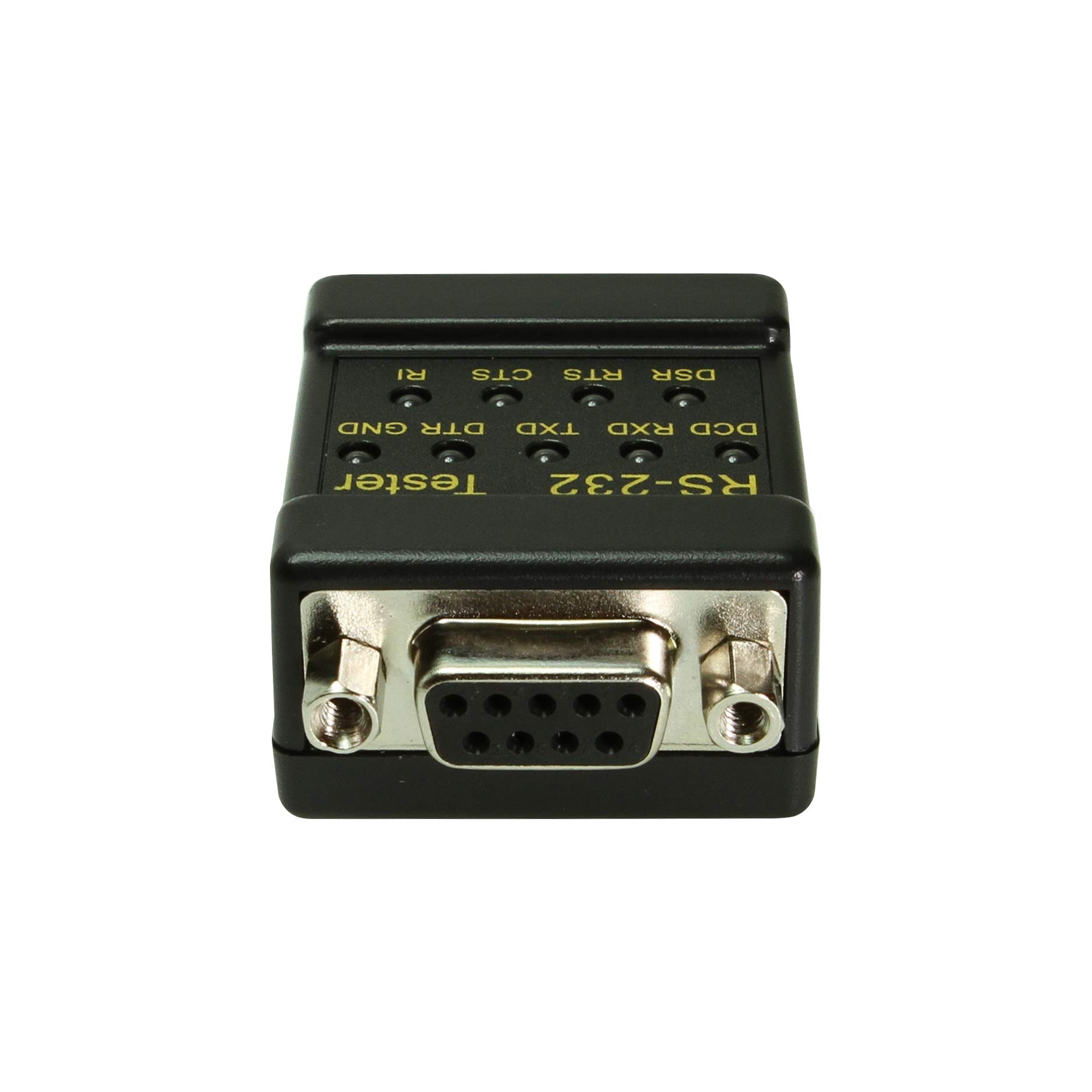

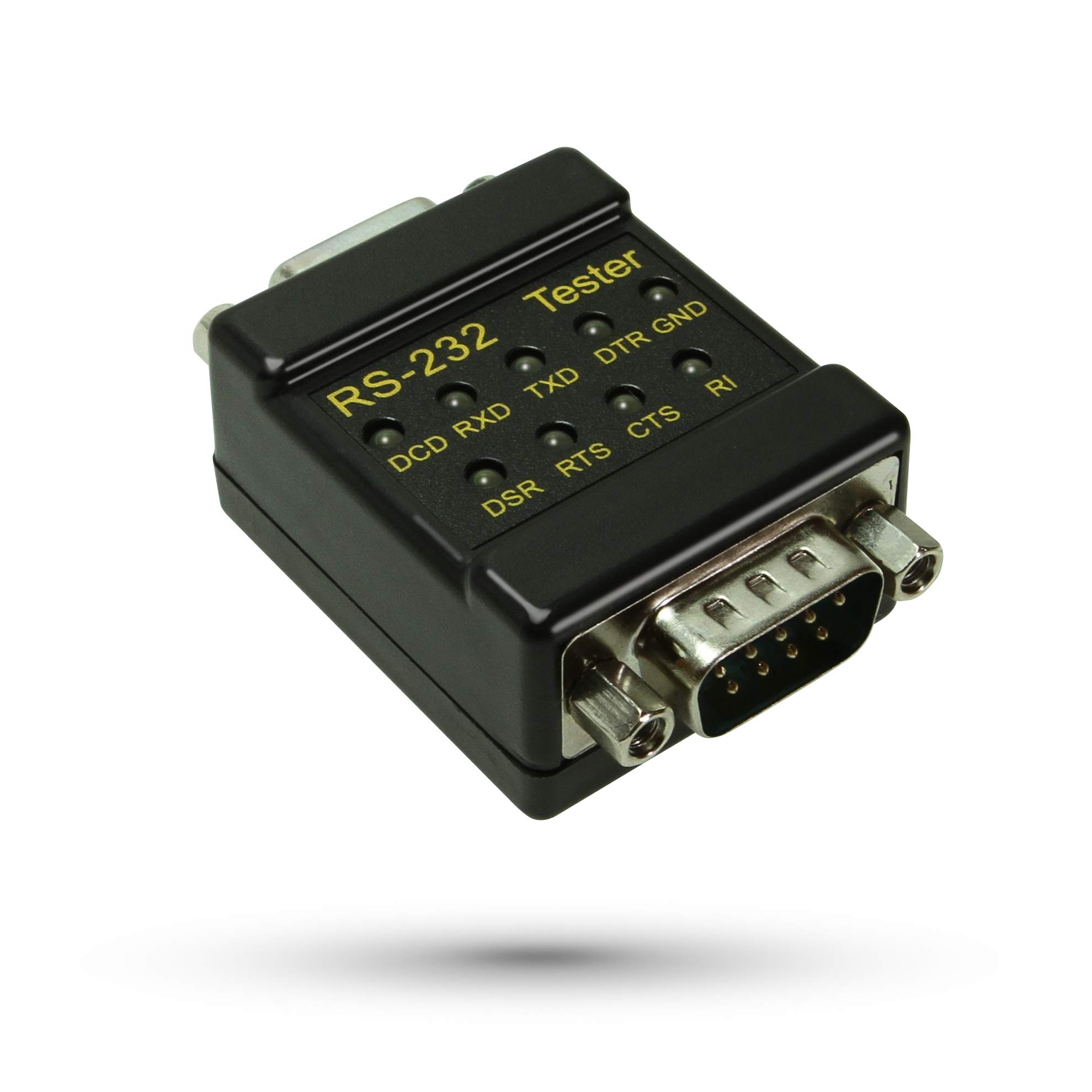

Cablemax RS-232 LED link Tester DB-9 Male to DB-9 Female
Amazon.com Price: ৳ 23.95 (as of 05/04/2023 05:00 PST- Details)
Description
Introduction:
The DB9 Tester is one of the best ways so that you can Check the relationship on any male or Feminine 9 Pin Serial connections. This adapter permits you to reveal the standing of your connections by way of marking them with LEDS, which flash while there’s process at the pins. This Instrument is simple to put in, it includes a Plug & Play Simple Check RS-232 Host to Instrument hyperlink.
Pin Assignments:
- DB – 9 Pin project Pin1 / Pin8 : DCD IN
- Pin2 / Pin3 : RXD IN
- Pin3 / Pin2 : TXD OUT
- Pin4 / Pin20 : DTR OUT
- Pin5 / Pin7 : GND
- Pin6 / Pin6 : DSR IN
- Pin7 / Pin4 : RTS OUT
- Pin8 / Pin5 : CTS IN
- Pin9 / Pin22 : RI IN
Additional Options and Specs:
- RS-232 DTE connector : DB9 – M
- RS-232 DCE connector : DB9 – F
- Data fee : As much as 200 Okay bps
- With GND & Shell Check’s LED
- Single / TTL out 1 – LED seem Inexperienced (V-)
- Single / TTL out 0 – LED seem Purple (V+)
- Housing : Plastic
- Weight : 55g
- Dimensions (LxWxH) : 45 * 35 * 21 ( mm ) body
OS Support
Windows 98, Me, XP, 2000, 2003, CE, Vista, Home windows 7, and Home windows 8
Linux and Mac OS 10.X
RS-232 DB-nine / DB25 Pin project No Energy required
Usual RS-232 DTE & DCE Interface
Provides DB-nine Feminine & DB-nine Male Connectors
Simple to put in, Plug & Play
OS Compatibility: Home windows 98, Me, XP, 2000, 2003, CE, Vista, Home windows 7, and Home windows 8 in addition to Linux and Mac OS 10.X
