FT232RQ based USB cable
6-pin connector with the following pinout: RTS, RX, TX, 5V, CTS, GND (RTS is the green cable and GND is black).
5V
FTDI Cable 5V
Amazon.com Price: ৳ 17.99 (as of 10/04/2023 05:22 PST- Details)
Description

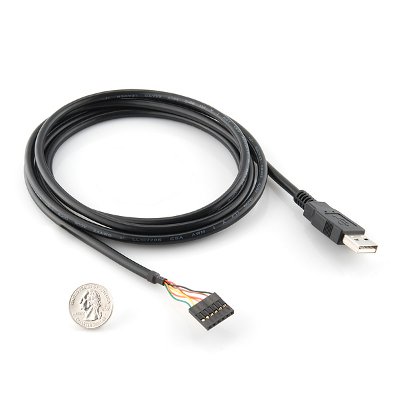

The FTDI cable is a USB to Serial (TTL stage) converter which permits for a easy solution to attach TTL interface units to USB. The I/O pins of this FTDI cable are configured to perform at 5V.
The FTDI cable is designed round an FT232RQ, that is housed in a USB A connector. The opposite aspect of the cable is terminated with a 0.1″ pitch, 6-pin connector with the next pinout: RTS, RX, TX, 5V, CTS, GND (RTS is the fairway cable and GND is black).
This cable has the similar pinout and capability as our FTDI Fundamental Breakout board; you’ll be able to use it to software your Arduino Professional, Professional Mini and Lilypad. To be used with the ones forums, align the black and inexperienced wires of the FTDI cable with the ‘BLK’ and ‘GRN’ labels at the PCB.
There are execs and cons to the FTDI Cable vs the FTDI Fundamental. The FTDI Fundamental has nice LED signs, however calls for a Mini-B cable. The FTDI Cable is easily secure in opposition to the weather, however is huge and can’t be embedded right into a venture as simply. The FTDI Fundamental makes use of DTR to lead to a hardware reset the place the FTDI cable makes use of the RTS sign.
FTDI drivers: http://www.ftdichip.com/FTDrivers.htm
FTDI cable schematics: http://www.sparkfun.com/datasheets/DevTools/FTDIp.c20Cablep.c205V.pdf
FT232RQ based totally USB cable
6-pin connector with the next pinout: RTS, RX, TX, 5V, CTS, GND (RTS is the fairway cable and GND is black).
5V
Additional information
