VCE RJ45 Cat6 Pass Through Connectors 50-Pack, Cat 6/Cat 5e RJ45 Ends Gold Plated for Solid or Stranded UTP Network…

Description

SPECIFICATIONS

1.ELECTRICAL:
UL APPLICATIONS: 250 VOLTS AC MAX. AT 2 AMPS.
DIELECTRIC WITHSTANDING VOLTAGE : 1000 VOLTS AC. 60 SEC.
INSULATION RESISTANCE: 500 MΩ.
CONTACT RESISTANCE: 20mΩ MAX.
OPERATING AMBIENT TEMPERATURE: -20°C ~ seventy five°C.

2.MECHANICAL:
STRAIN RELIFE: 20POUND MIN.
DURABILITY: 1200 MATING CYCLES.

3.MATERIAL:
HOUSING: POLYCARBONATE, UL94V-zero OR UL94V-2.
COLOR: TRANSPARENT OR OTHER COLOR ARE AVAILABLE.
CONTACT BLADE: COPPER ALLOY.
GOLD PLATING: 3u”~50u”, ARE AVAILABLE.

4. USAGE:
SUITABLE FOR STRANDED & SOLID WIRE 23AWG ~ 26 AWG.

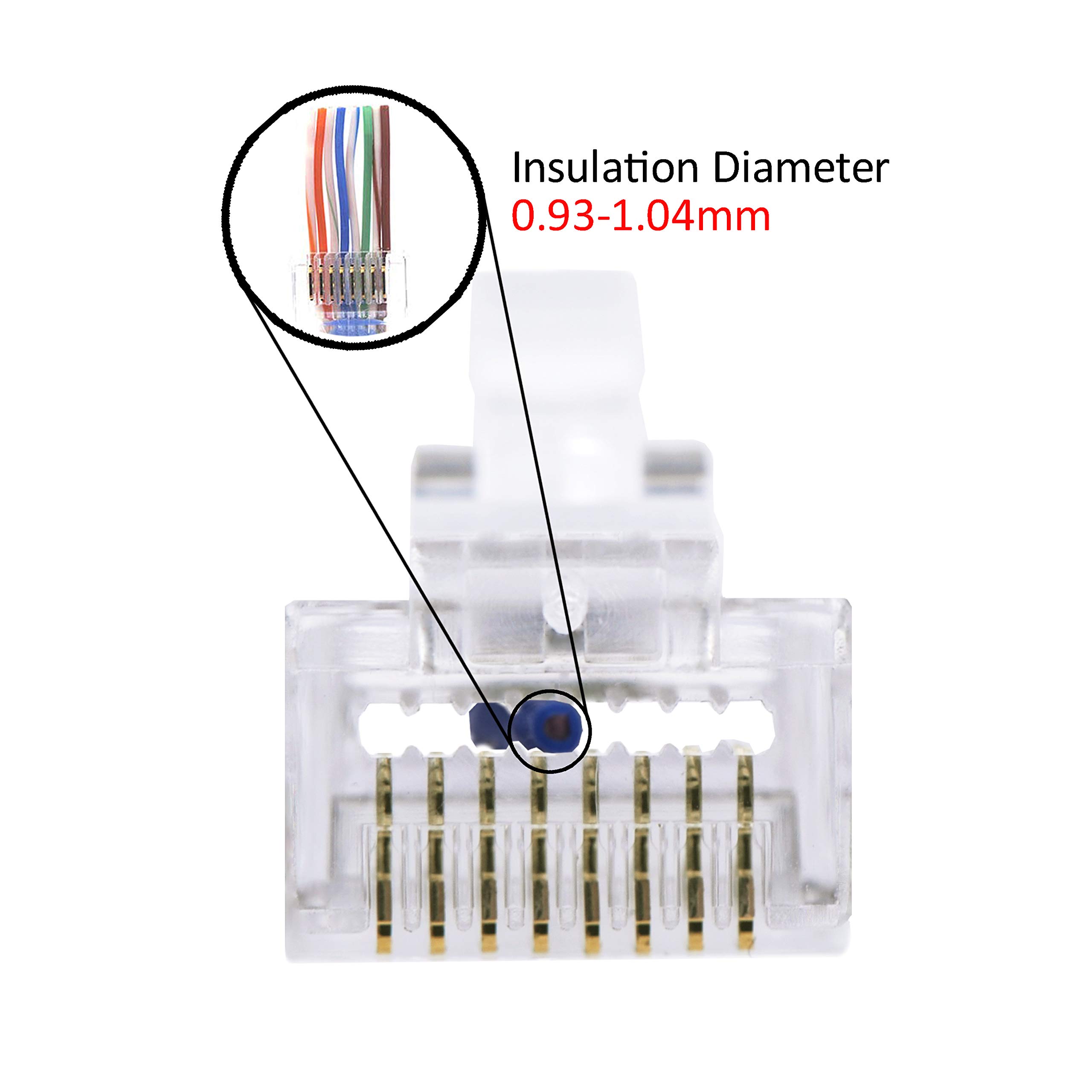

(It may be used for the cord OD from Ø 0.93 ~ Ø1.04)
Gold plated RJ45 CAT6 Finish Go Via ethernet RJ45 connector plugs will let you briefly and simply create class 6 cables in most well-liked lengths.Notice: you want a Finish Go Via Crimper Device(offered one after the other) to put in those plugs
Appropriate for cord OD ∅zero.93 ~ ∅1.04, multi-stranded and unmarried-stranded cables 23AWG ~ 26AWG. AWG and OD MUST BOTH meet the necessities.

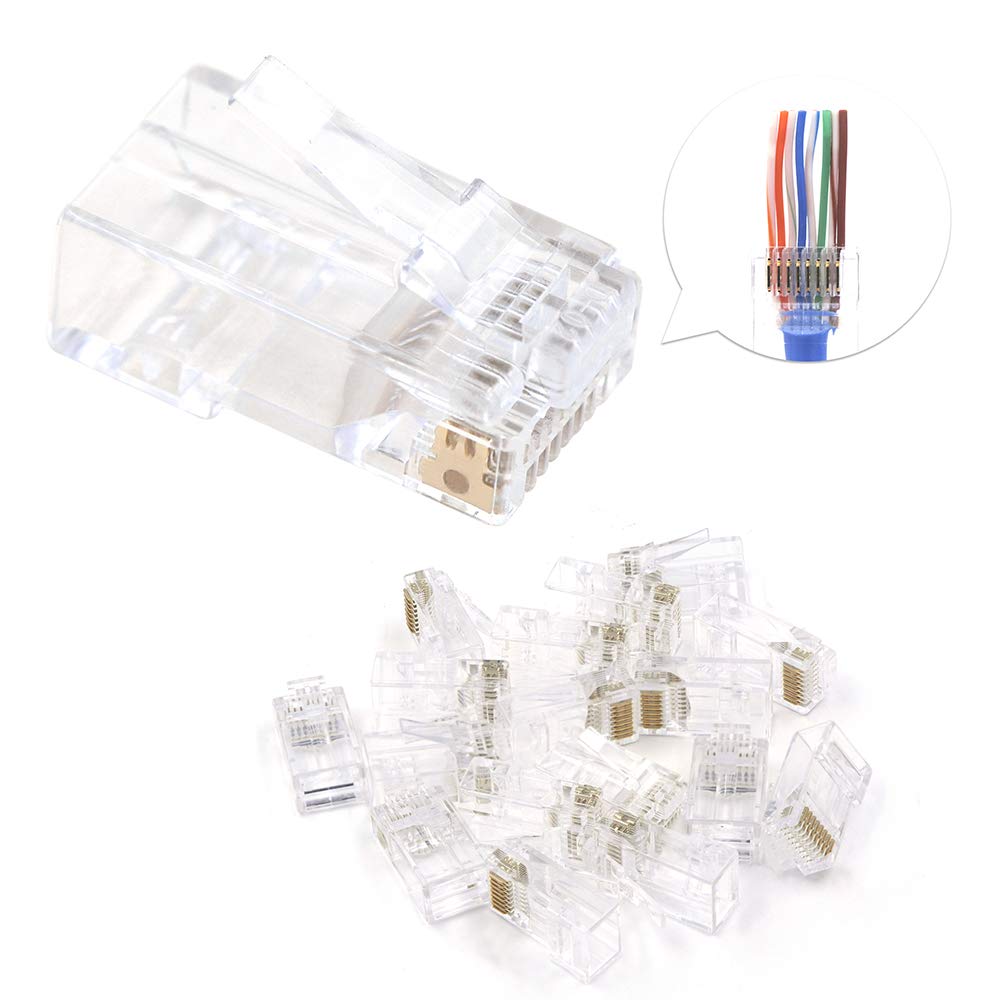

PASS-THRU DESIGN simplifies terminations as wires are inserted throughout the connector and out the opposite aspect. This frustration-unfastened 1-piece plug seats cable jackets tightly for quick crimps and connections.
Clear gold plated RJ45 plugs permit you to determine cord series, getting rid of scrap and flawed crimps.
Package deal Contents: 50 x RJ45 CAT6 Go Via Modular Plug. With UL Indexed, simply use it with out worry.
